Standard
Comply with ANSI/EIA RS310-D, IEC 60297-2,DIN41494;
PART1;DIN41494;PART7
Material
SPCC Cold Rolled Steel
19" rails:2.0mm, side panel:1.0mm
others:1.2mm
Color
B=black,RAL9005
G=grey, RAL7035
Features

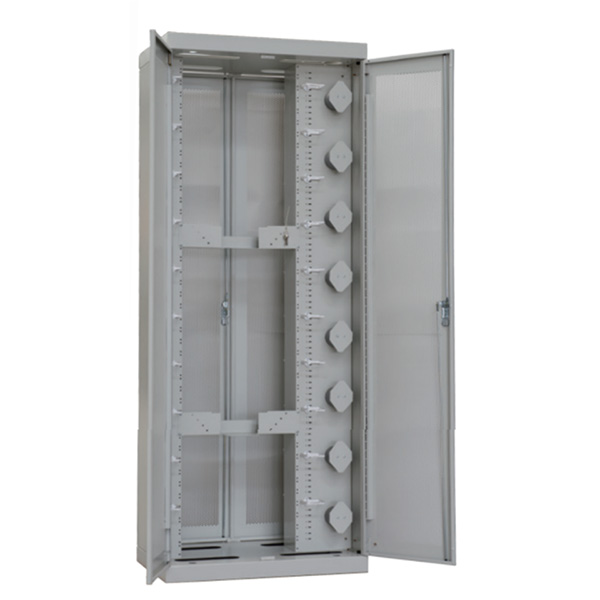

●Exquisite design with precise dimensions and craftsmanship
●Double-opening doors for front/back

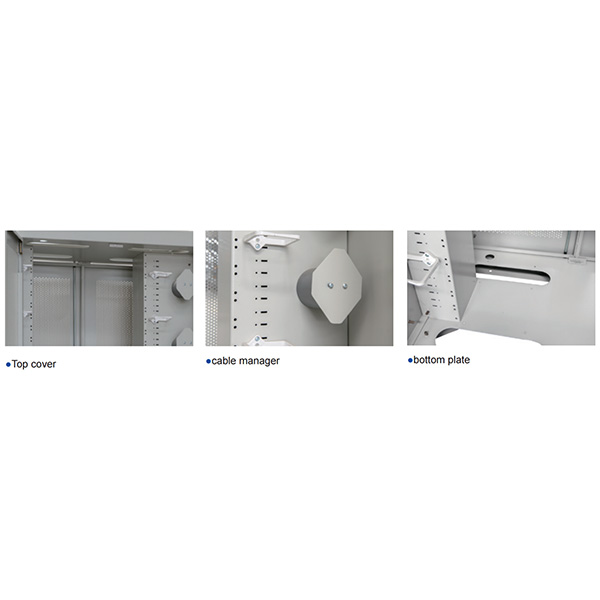

●Inner cable managers are made of eco-friendly plastic
●Multiple cable routing
●Multiple cable routing rings on profile rails for easy recognition
●Optional pedestals for fixation,cable routing
●Curved front screen door & back double screen door enable equipment to ventilate well
Specification
Model No. | Capacity | WidthxDepth |
(U) | (mm) | |
ASF7542 | 42 | 780x500 |
ASF7542W | 795x515 |
