Mechanical Characteristics
Cable under the minimum tension≥400N
Conductor elongation:≥15%
Jacket before Aging
Tensile Strength≥13.5Mpa
Elongnation≥150%
Jacket after Aging
Tensile Strength≥12.5Mpa
Elongnation≥125%
Electrical Characteristics
Impedance:1-16Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:111(ohms)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S

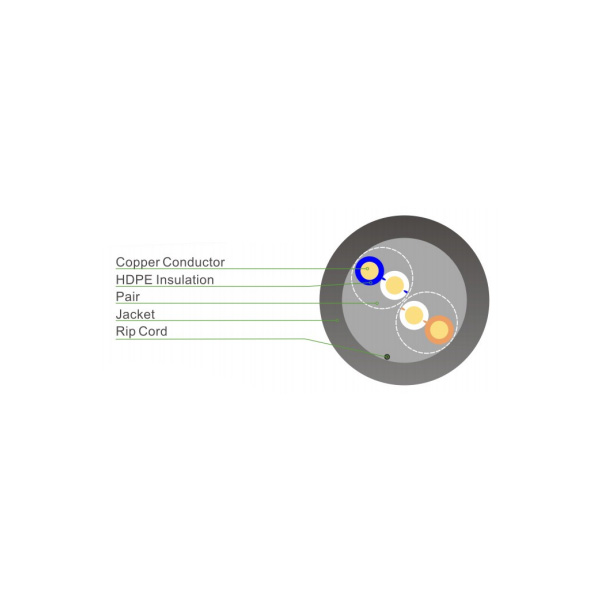

Conductor
Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 4,twisted in 2 pairs |
Color code | white-blue/blue,white-orange/orange |
Individual pair shielded | None |
Overall shield | None |
Drain wire | None |
Order information
Item | Outer Jacket | Overall diameter |
ASD106-P | CMX | 4.3±0.2 |
