F/UTP Steel Wire Support Shielded Twisted Pair Installation Cat 5e Cable
  • F/UTP Steel Wire Support Shielded Twisted Pair Installation Cat 5e Cable

    Category:Network Lan Cable
    Tags:Cat 5e Cable

    Application
    Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class D Category 5e channel standards.
    Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
    Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
    Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
    Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
    Color Availability:Additional cable colors available.

    Electrical Characteristics

    Impedance:1-100Mhz 100±15(ohms).
    Rated Temperature:75℃.
    DC Resistance Unbalance(%):Max 2.5
    DC Resistance 20℃:9.5(ohms/100m)
    Pair-to Ground Capacitance Unbalance:330(pF/100m).
    Insultation Resistance:>5000MΩ*Km.
    Dielectric strength:DC 2500V 2S

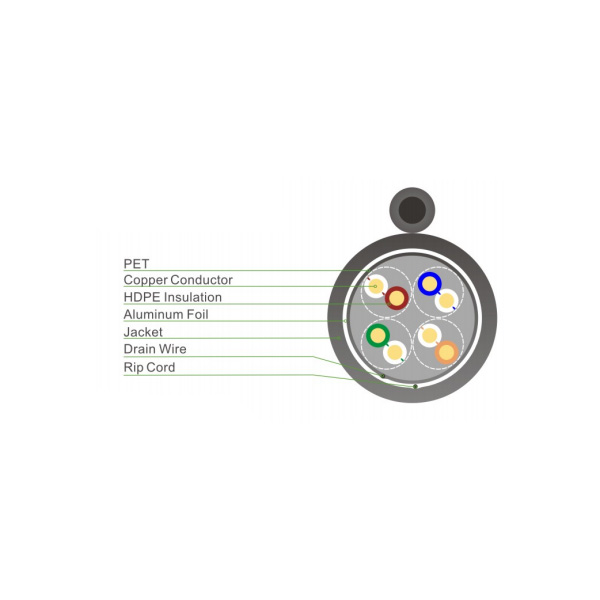

    Conductor

    Conductor Solid Bare Copper 23AWG
    Insulation HDPE
    Total number of insulated conductors 8,twisted in 4 pairs
    Color code white-blue/blue,white-orange/orange,white-green/green,white-brown/brown
    Individual pair shielded None
    Overall shield aluminum foil,providing 100% coverage,foil face out
    Drain wire None

    Order information

    Item Outer Jacket Overall diameter
    ASD235-P CMX (6.3+2.3)±0.3
    ASD235-C CM (6.3+2.3)±0.3
    ASD235-R CMR (6.3+2.3)±0.3
    ASD235-L LSZH (6.3+2.3)±0.3
    ASD235-E LDPE (6.3+2.3)±0.3
