Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
Third party tested to Category 5e channel compliance.
Meets requirements of IEEE 802.3af and IEEE 802.3af for PoE applications.
Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.
Electrical Characteristics
Impedance:1-100Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:9.5(ohms/100m)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S

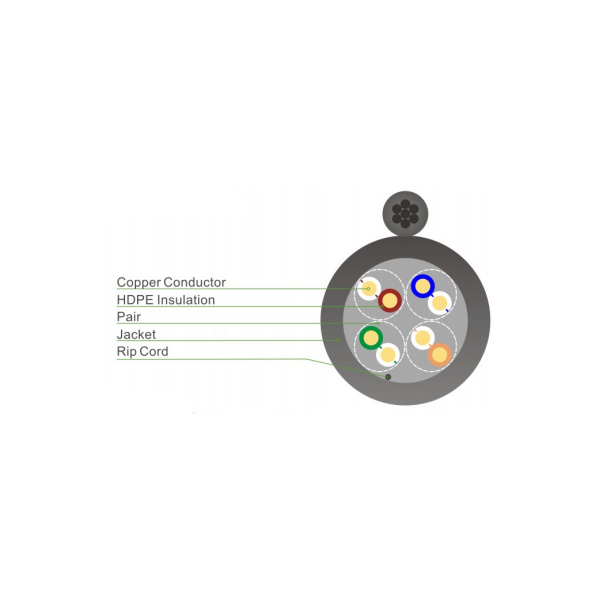

Conductor
Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8,twisted in 4 pairs |
Color code | white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
Individual pair shielded | None |
Overall shield | None |
Drain wire | None |
Order information
Item | Outer Jacket | Overall diameter |
ASD225-E | LDPE | (5.1+2.3)±0.3 |
