Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class D channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
Third party tested comply with ANSI/TIA/EIA-568-C.2
Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.
Electrical Characteristics
Impedance:1-250Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:8.4(ohms/100m)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S

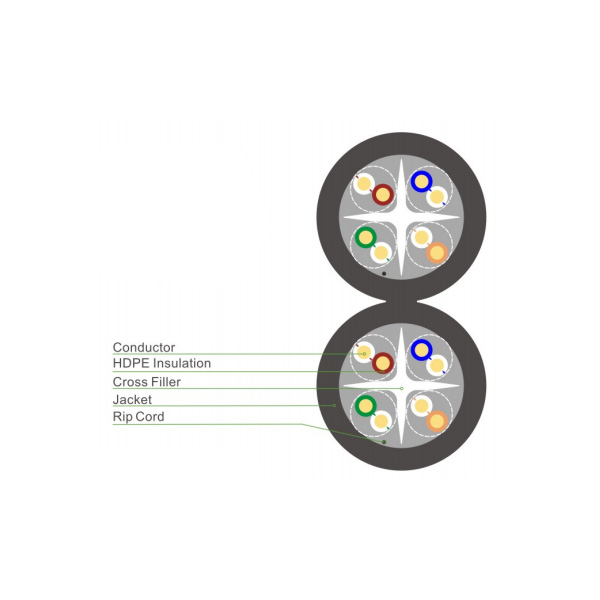

Conductor
| Conductor |
Solid Bare Copper 23AWG |
| Insulation |
HDPE |
| Total number of insulated conductors |
2*8,twisted in 2*4 pairs |
| Color code |
white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
| Individual pair shielded |
None |
| Overall shield |
None |
| Drain wire |
None |
Order information
| Item |
Outer Jacket |
Overall diameter |
| ASD215-P |
CMX |
(6.6+6.6)±0.2 |
| ASD215-C |
CM |
(6.6+6.6)±0.2 |
| ASD215-R |
CMR |
(6.6+6.6)±0.2 |
| ASD215-L |
LSZH |
(6.6+6.6)±0.2 |
| ASD215-E |
LDPE |
(6.6+6.6)±0.2 |
