U/UTP Shielded Twisted Pair Installation Cat 5e Cable
  • U/UTP Shielded Twisted Pair Installation Cat 5e Cable

    Category:Network Lan Cable
    Tags:Cat 5e Cable

    Application
    Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards.
    Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
    Third party tested to Category 5e channel compliance.
    Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
    Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
    Color Availability:Additional cable colors available.

    Electrical Characteristics
    Impedance:1-100Mhz 100±15(ohms).
    Rated Temperature:75℃.
    DC Resistance Unbalance(%):Max 2.5
    DC Resistance 20℃:9.5(ohms/100m)
    Pair-to Ground Capacitance Unbalance:330(pF/100m).
    Insultation Resistance:>5000MΩ*Km.
    Dielectric strength:DC 2500V 2S

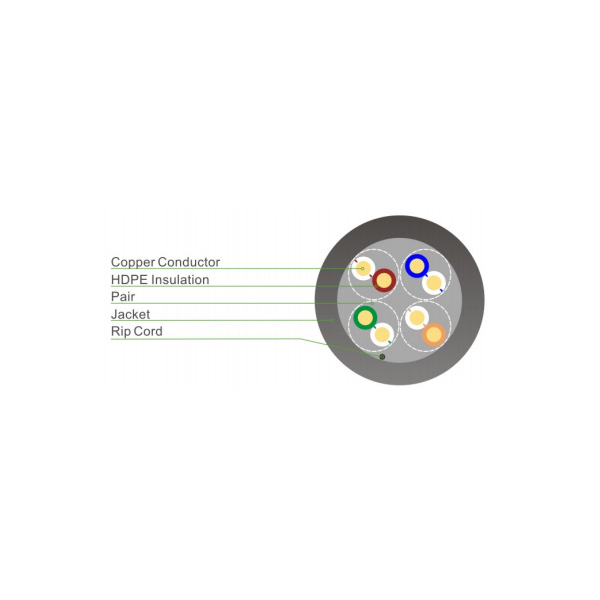

    Conductor

    Conductor Solid Bare Copper 23AWG
    Insulation HDPE
    Total number of insulated conductors 8,twisted in 4 pairs
    Color code white-blue/blue,white-orange/orange,white-green/green,white-brown/brown
    Individual pair shielded None
    Overall shield None
    Drain wire None

    Order information

    Item Outer Jacket Overall diameter
    ASD135-P CMX 5.1±0.2
    ASD135-C CM 5.1±0.2
    ASD135-R CMR 5.1±0.2
    ASD135-L LSZH 5.1±0.2
    ASD135-E LDPE 5.1±0.2
