Application
Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards.
Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets IEEE 802.3af and IEEE 802.3at for PoE applications.
Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.
Electrical Characteristics
Impedance:1-250Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:8.4(ohms/100m)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S

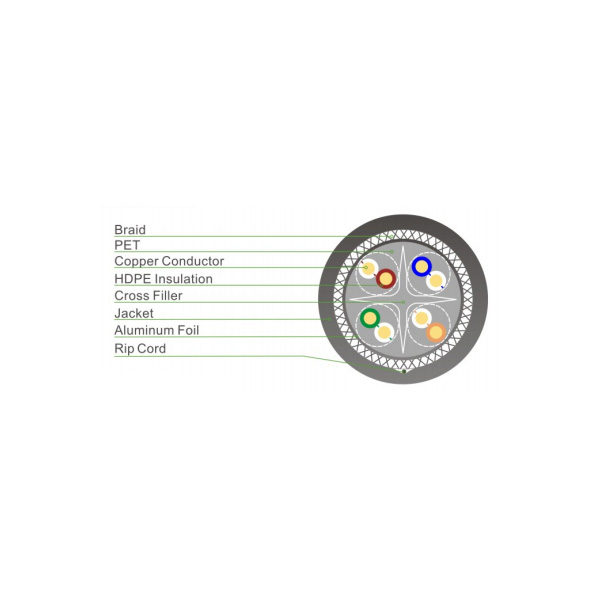

Conductor
| Conductor |
Solid Bare Copper 23AWG |
| Insulation |
HDPE |
| Total number of insulated conductors |
8,twisted in 4 pairs |
| Color code |
white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
| Individual pair shielded |
None |
| Overall shield |
aluminum foil,providing 100% coverage,foil face out |
| Drain wire |
None |
Order information
| Item |
Outer Jacket |
Overall diameter |
| ASD185-P |
CMX |
8.1±0.2 |
| ASD185-C |
CM |
8.1±0.2 |
| ASD185-R |
CMR |
8.1±0.2 |
| ASD185-L |
LSZH |
8.1±0.2 |
| ASD185-E |
LDPE |
8.1±0.2 |
