Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class EA channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af for PoE applications.
Third party tested to comply with ANSI/TIA/EIA-568-C.2.
Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.
Electrical Characteristics
Impedance:1-250Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:8.4(ohms/100m)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S
Conductor

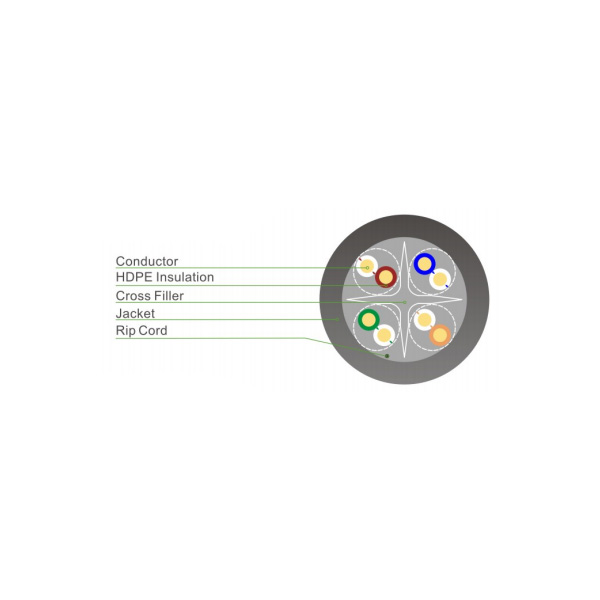

Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8,twisted in 4 pairs |
Color code | white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
Individual pair shielded | None |
Overall shield | None |
Drain wire | None |
Order information
Item | Outer Jacket | Overall diameter |
ASD165-P | CMX | 6.4±0.2 |
ASD165-C | CM | 6.4±0.2 |
ASD165-R | CMR | 6.4±0.2 |
ASD165-L | LSZH | 6.4±0.2 |
ASD165-E | LDPE | 6.4±0.2 |
Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class EA channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af for PoE applications.
Third party tested to comply with ANSI/TIA/EIA-568-C.2.
Descending length cable markings enable easy identicification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.
Electrical Characteristics
Impedance:1-250Mhz 100±15(ohms).
Rated Temperature:75℃.
DC Resistance Unbalance(%):Max 2.5
DC Resistance 20℃:8.4(ohms/100m)
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Insultation Resistance:>5000MΩ*Km.
Dielectric strength:DC 2500V 2S
Conductor
Conductor | Solid Bare Copper 23AWG |
Insulation | HDPE |
Total number of insulated conductors | 8,twisted in 4 pairs |
Color code | white-blue/blue,white-orange/orange,white-green/green,white-brown/brown |
Individual pair shielded | None |
Overall shield | None |
Drain wire | None |
Order information
Item | Outer Jacket | Overall diameter |
ASD165-P | CMX | 6.4±0.2 |
ASD165-C | CM | 6.4±0.2 |
ASD165-R | CMR | 6.4±0.2 |
ASD165-L | LSZH | 6.4±0.2 |
ASD165-E | LDPE | 6.4±0.2 |
