F/UTP Shielded Twisted Pair Installation Cat 6A Cable
  • F/UTP Shielded Twisted Pair Installation Cat 6A Cable

    Category:Network Lan Cable
    Tags:Cat 6A Cable

    Standard
    IEC/ISO 61156-5
    ANSI/TIA568C.2
    ISO/IEC 11801

    Application
    Suitable for structured premises cabling.
    For transmission of digital and analogue voice and data signals.
    Especially suitable for all Class EA applications.
    ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 100 Base-T,10G Base-T.(IEEE 802.3)
    Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5)

    Electrical Characteristics
    Impedance:4-100Mhz 100±15(ohms)
                        100-200Mhz 100±22(ohms)
                        200-1000Mhz 100±32(ohms)
    Max. Counductor DC Resistance 20℃:8.4(ohms/100m)
    Resistance unbalance(%):max 2.5.
    Pair-to Ground Capacitance Unbalance:330(pF/100m).
    Transfer Impendance:Max 10 mohms/m@100Mhz.
    Coupling Attenuation:Min 80dB.
    Installation temperature:0-50℃.
    Operation temperature:-20-60℃.

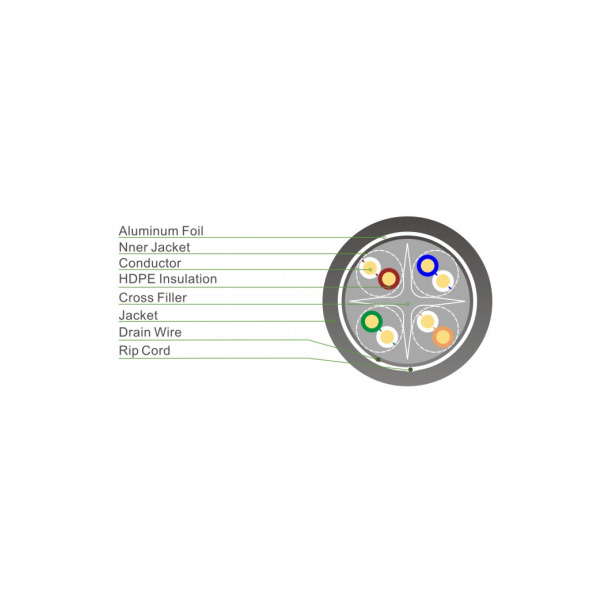

    Conductor

    Conductor Solid Bare Copper 23AWG
    Insulation HDPE
    Total number of insulated conductors 8,twisted in 4 pairs
    Color code blue*white,orange*white,green*white,brown*white
    Individual pair shielded None
    Overall shield aluminum foil,providing 100% coverage,foil face out
    Drain wire Tinned copper

    Order information

    Item Outer Jacket Overall diameter
    ASD305-P CMX 7.6±0.3
    ASD305-C CM 7.6±0.3
    ASD305-R CMR 7.6±0.3
    ASD305-L LSZH 7.6±0.3
    ASD305-E LDPE 7.6±0.3
