Standard
IEC/ISO 61156-5
ANSI/TIA568C.2
ISO/IEC 11801
Application
Suitable for structured premises cabling.
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class EA applications.
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 100 Base-T,10G Base-T.(IEEE 802.3)
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5)
Electrical Characteristics
Impedance: 4-100Mhz 100±15(ohms)
100-200Mhz 100±22(ohms)
200-1000Mhz 100±32(ohms)
Max. Counductor DC Resistance 20℃:8.4(ohms/100m)
Resistance unbalance(%):max 2.5.
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Transfer Impendance:Max 10 mohms/m@100Mhz.
Coupling Attenuation:Min 80dB.
Installation temperature:0-50℃.
Operation temperature:-20-60℃.

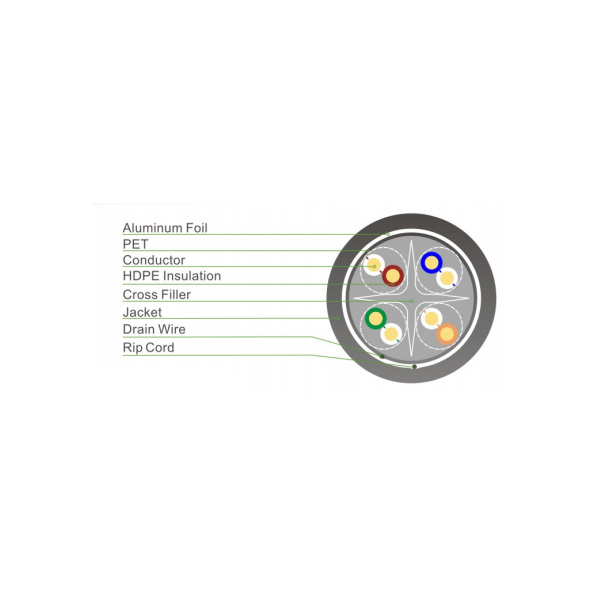

Conductor
Conductor | Solid Bare Copper 23AWG |
Insulation | PE(Skin-Foam-Skin) |
Total number of insulated conductors | 8,twisted in 4 pairs |
Color code | blue*white,orange*white,green*white,brown*white |
Individual pair shielded | None |
Overall shield | aluminum foil,providing 100% coverage,foil face out |
Drain wire | Tinned copper |
Order information
Item | Outer Jacket | Overall diameter |
ASD265-P | CMX | 7.6±0.2 |
ASD265-C | CM | 7.6±0.2 |
ASD265-R | CMR | 7.6±0.2 |
ASD265-L | LSZH | 7.6±0.2 |
ASD265-E | LDPE | 7.6±0.2 |
