Standard
IEC/ISO 61156-5
ANSI/TIA568C.2
ISO/IEC 11801
Application
Suitable for structured premises cabling.
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class EA applications.
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 100 Base-T,10G Base-T.(IEEE 802.3)
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5)
Electrical Characteristics
Impedance:4-100Mhz 100±15(ohms)
100-200Mhz 100±22(ohms)
200-1000Mhz 100±32(ohms)
Max. Counductor DC Resistance 20℃:8.7(ohms/100m)
Resistance unbalance(%):max 2.5.
Pair-to Ground Capacitance Unbalance:330(pF/100m).
Transfer Impendance:Max 10 mohms/m@100Mhz.
Coupling Attenuation:Min 80dB.
Installation temperature:0-50℃.
Operation temperature:-20-60℃.

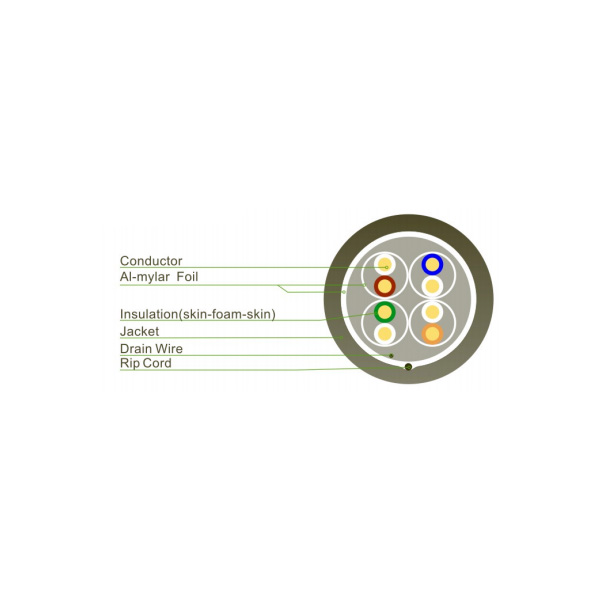

Conductor
| Conductor |
Solid Bare Copper 23AWG |
| Insulation |
PE(Skin-Foam-Skin） |
| Total number of insulated conductors |
8,twisted in 4 pairs |
| Color code |
blue*white,orange*white,green*white,brown*white |
| Individual pair shielded |
aluminum foil,providing 100% coverage,foil face out |
| Overall shield |
Tinned copper braid |
| Drain wire |
Tinned copper |
Order information
| Item |
Outer Jacket |
Overall diameter |
| ASD175-P |
CMX |
8.3±0.3 |
| ASD175-C |
CM |
8.3±0.3 |
| ASD175-R |
CMR |
8.3±0.3 |
| ASD175-L |
LSZH |
8.3±0.3 |
| ASD175-E |
LDPE |
8.3±0.3 |
