This range of power distribution unit are designed for installation and use in networking cabinets and racks.
To meet different need, it include 19” horizontally or higher density vertically mounted options; 1U/1.5U/2U heights; Plastic or higher quality aluminum housing cases; various power types, and different choices of functions.
| Socket Type |
South African Type socket |
| Input Lead |
3 x 1.5mm² X 1.8M |
| Input Plug |
BS546 / RSA546 Molded SA Type Plug |
| Rated Voltage |
250V, 50/60Hz |
| Rated Current |
16A |
| Max. Power |
4000W |
| Input Cable Entry |
Rear / Left / Right Side |
| Control Functions |
LED Power Indicator |
W/O
|
| Master Switch |
YES
|
| Mini Circuit Breaker (1-Pole, 2-Pole, 3-Pole) |
W/O
|
| Overload Protector |
W/O
|
| Protection Function |
Leakage Protector |
W/O
|
| 1-LED Surge Protector (Imax: 4.5kA, 6.5kA) |
W/O
|
| 3-LED Surge Protector with Filter (Imax: 9kA) |
W/O
|
| Hot-plug 1-LED Surge protector |
W/O
|
| Hot-plug 3-LED Surge protector |
W/O
|
| Ampere Meter |
W/O
|
| Voltage & Ampere Meter |
W/O
|
| Hot-plug Ampere Meter |
W/O
|
| Hot-plug Voltage & Ampere Meter |
W/O
|
| Other Function |
Filter for RJ11/RJ45 |
W/O
|
| Dual USB Charger 5V 1A/2A |
W/O
|
| RJ45 Lan Port |
W/O
|
| RS485 Monitor |
W/O
|
| Housing Case |
Aluminum / Plastic |
| Product Width* Depth |
62 * 44.4 mm (1U) |
| Optional Fittings |
2pcs φ6x16mm cross bolt, 2pcs M6 float nut, User Manual |
| Package |
1PC/Polybag + Gift Box |
| Safety Authentication |
CE |
| RoHS Compliant |
YES |
|
Item No.
|
Height
|
Description |
Color
|
| AS-BL-SA10CB06 |
1.0U |
6 ways South African sockets, with Circuit Breaker |
Black |
| AS-BL-SA10G06S |
1.0U |
6 ways South African sockets, Switched |
Black |
| AS-SV-SA10O06 |
1.0U |
6 ways South African sockets, with Overloading protector |
Silver |
| AS-SV-SA10S06S |
1.0U |

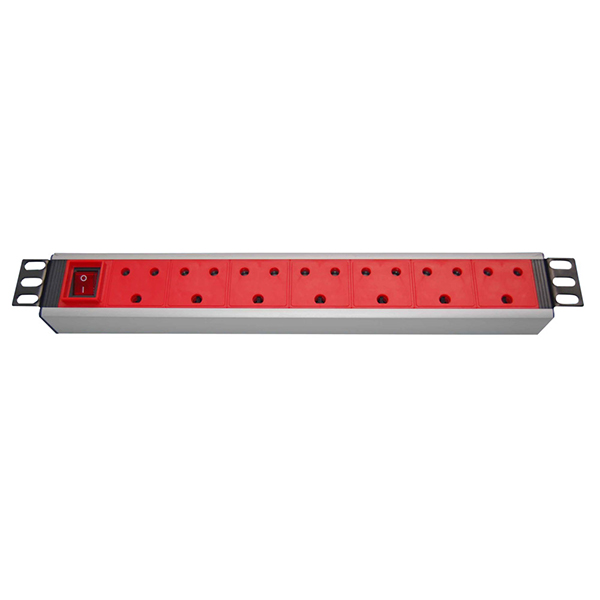

6 ways South African sockets, with Surge protection, Switched |
Silver |
| AS-BL-SA15G06S |
1.5U |
6 ways South African sockets, Switched |
Black |
| AS-BL-SA15P06 |
1.5U |
6 ways South African sockets, with Power indicator |
Black |
| AS-SV-SA15V06 |
1.5U |
6 ways South African sockets, with Voltage & Ampere Meter |
Silver |
| AS-SV-SA15L06 |
1.5U |
6 ways South African sockets, with Leakage protector |
Silver |
| AS-SV-SA15G06S |
1.5U |
6 ways South African sockets, Switched |
Silver |
| ……..More items according to customer’s requirement |
