This range of power distribution unit are designed for installation and use in networking cabinets and racks.
To meet different need, it include 19” horizontally or higher density vertically mounted options; 1U/1.5U/2U heights; Plastic or higher quality aluminum housing cases; various power types, and different choices of functions.
W/O YES W/O W/O W/O W/O YES W/O W/O W/O W/O W/O W/O W/O W/O W/O W/O
Socket Type
NF C61-314 16A Socket
Input Lead
3 x 1.5mm² X 1.8M
Input Plug
DIN49441 16A Plug
Rated Voltage
250V, 50/60Hz
Rated Current
16A
Max. Power
4000W
Input Cable Entry
Rear / Left / Right Side
Control Functions
LED Power Indicator
Master Switch
Mini Circuit Breaker (1-Pole, 2-Pole, 3-Pole)
Overload Protector
Protection Function
Leakage Protector
1-LED Surge Protector (Imax: 4.5kA, 6.5kA)
3-LED Surge Protector with Filter (Imax: 9kA)
Hot-plug 1-LED Surge protector
Hot-plug 3-LED Surge protector
Ampere Meter
Voltage & Ampere Meter
Hot-plug Ampere Meter
Hot-plug Voltage & Ampere Meter
Other Function
Filter for RJ11/RJ45
Dual USB Charger 5V 1A/2A
RJ45 Lan Port
RS485 Monitor
Housing Case
Aluminum / Plastic
Product Width* Height
62 * 44.4mm (1.5U)
Optional Fittings
2pcs φ6x16mm cross bolt, 2pcs M6 float nut, User Manual
Package
1PC/Polybag + Gift Box
Safety Authentication
CE
RoHS Compliant
YES
Item No. |
Height |
Description |
Color |
||

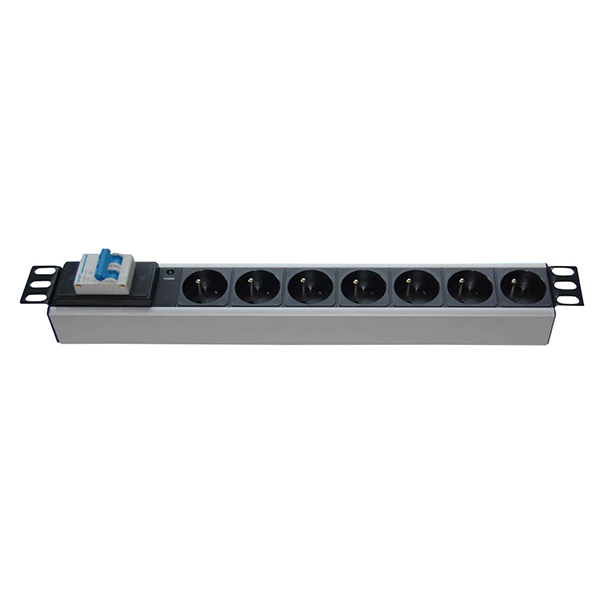

AS-BL-F10CB08 | 1.0U | 8 ways France sockets, with Circuit Breaker | Black | ||
AS-BL-F10G10S | 1.0U | 10 ways France sockets, Switched | Black | ||
AS-SV-F10O08 | 1.0U | 8 ways France sockets, with Overloading protector | Silver | ||
AS-SV-F10S06S | 1.0U | 6 ways France sockets, with Surge protection, Switched | Silver | ||

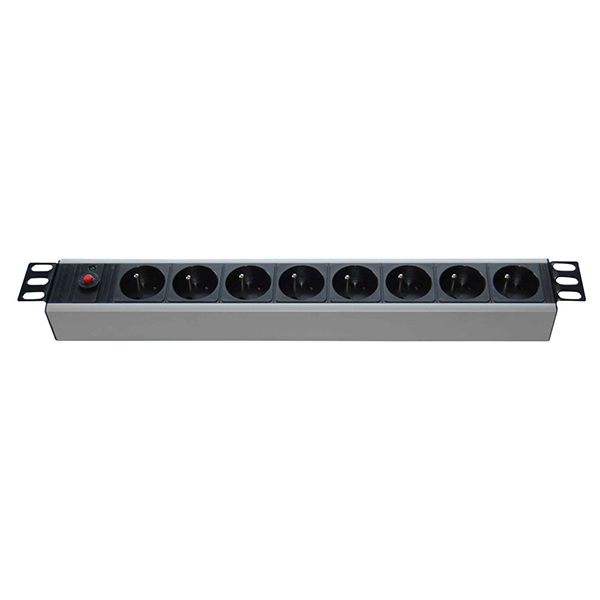

AS-BL-F15G08S | 1.5U | 8 ways France sockets, Switched | Black | ||
AS-BL-F15P08 | 1.5U | 8 ways France sockets, with Power indicator | Black | ||
AS-SV-F15V06 | 1.5U | 6 ways France sockets, with Voltage & Ampere Meter | Silver | ||
AS-SV-F15L06 | 1.5U | 6 ways France sockets, with Leakage protector | Silver | ||
AS-SV-F15S06S | 1.5U | 6 ways France sockets, with Surge protection, Switched | Silver | ||
……..More items according to customer’s requirement |
